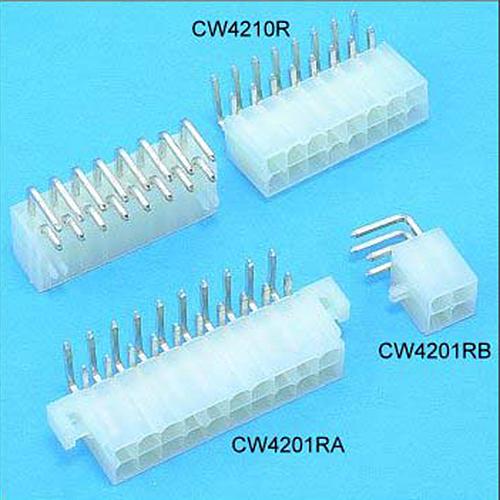

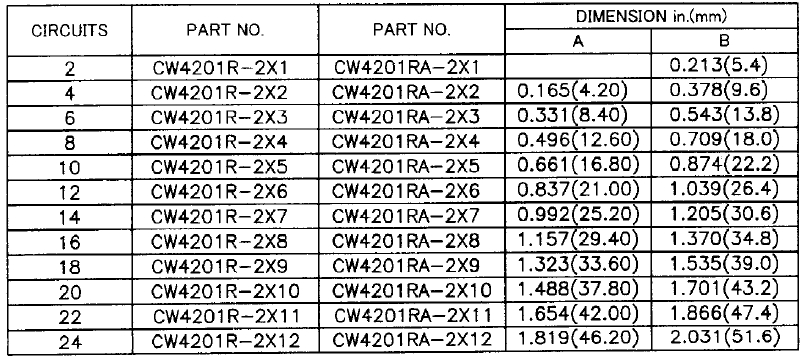

Our Products Board to Board Connector 4.20mm pitch Board to Board CW4201R, CW4201RA 0.165"(4.20mm) Pitch Power Dual Row Connectors Wafer CW4201R , CW4201RA Series Poles: 2-24 Material: Insulator: NYLON66 UL94V-2 Contact: 1.14mm(0.045") square pin, brass, tin plated 60u" Mates with CH4201 series housing Specifications Current rating: 7A AC, DC Voltage rating: 250V AC, DC Temperature range: -25℃ ~ +85℃ Insulation resistance: 1,000MΩ min. Withstand voltage: 1500 AC/minute Applicable PC board thickness: 0.063" (1.6mm) CW4201R, CW4201RA Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. PART NO. CW4201R CW4201RA Poles 2X1 2X2 2X3 2X4 2X5 2X6 2X7 2X8 2X9 2X10 2X11 2X12 See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
