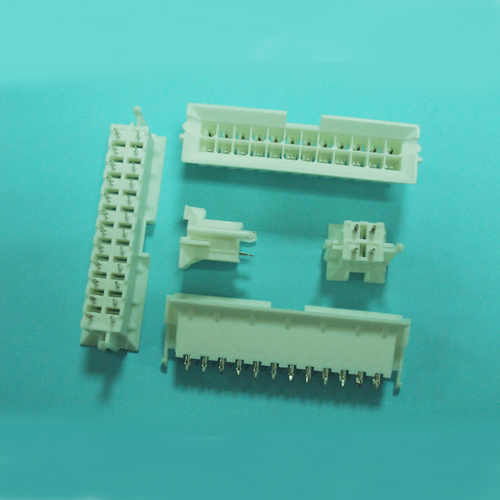

    W4240D-xxW0T Series

    • Poles: 4-24
    • Material:NYLON 66 UL 94V-0

    Specifications

    • Current rating: 9A AC, DC
    • Voltage rating: 600V AC, DC
    • Temperature range: -40℃ ~ +105℃
    • Insulation resistance: 1,000MΩ min.
    • Withstand voltage: 1,500 AC/minute

    W4240D

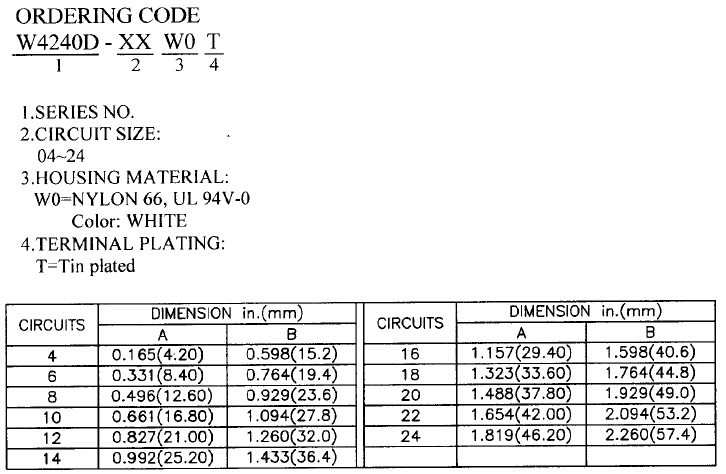

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES NO. W4240D
CIRCUIT SIZE:
HOUSING MATERIAL: W0
TERMINAL PLATING T
