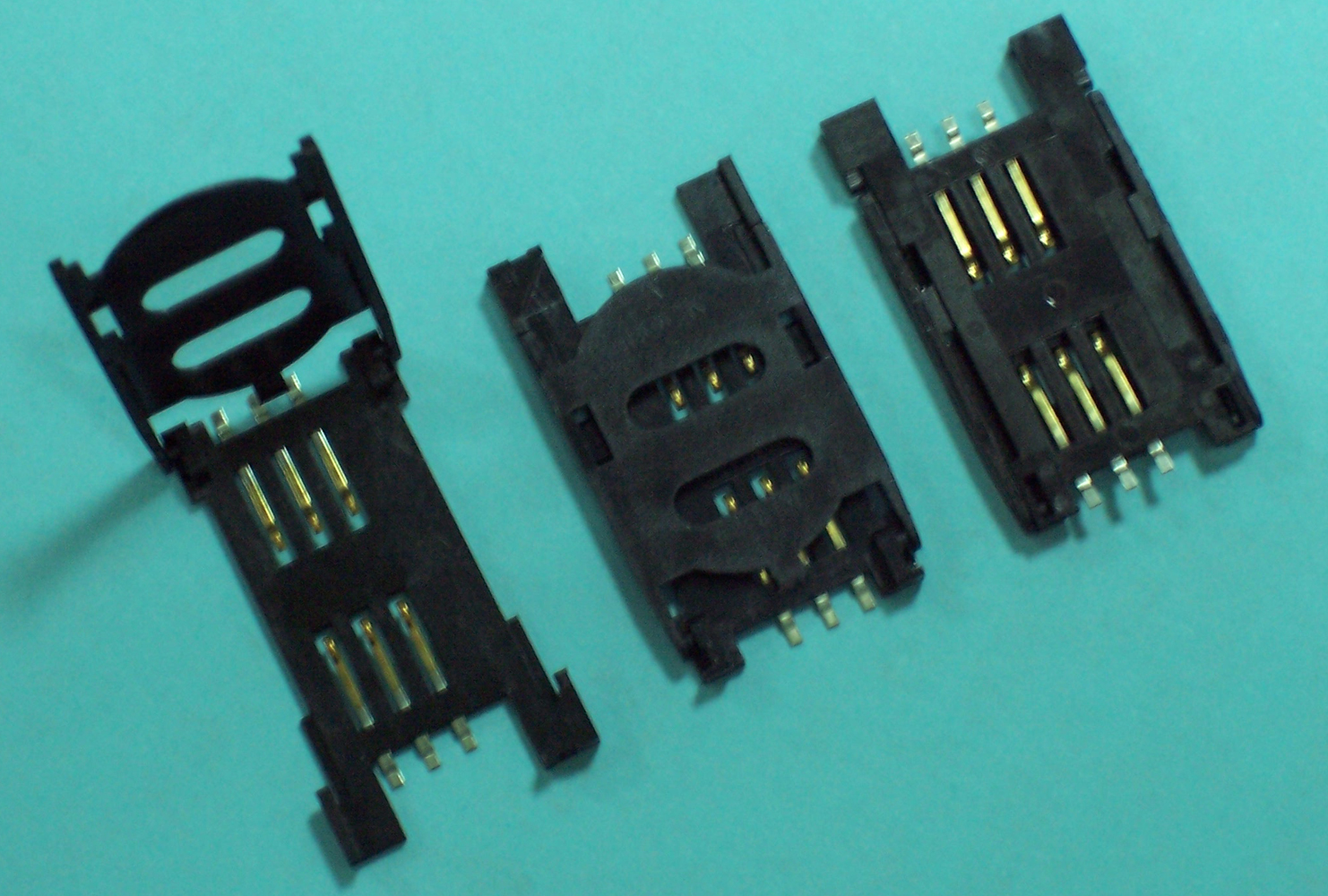

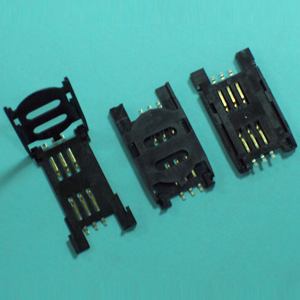

• SIM CARD Connector SIM CARD CONNECTOR ASSY W/COVER TYPE

    SIM CARD Connector SIM CARD CONNECTOR ASSY W/COVER TYPE

    Material:

    1. Body: PPS UL 94V-0 Rated, Color: Black
    2. Cover: PPS UL 94V-0 Rated, Color: Black
    3. Contact: Phosphor Bronze
    4. Contact plating: Gold plating over nickel on contact area, tin/lead plating on terminal

    Specification:

    1. Current rating: 0.5 AMP Max.
    2. Dielectric Withstanding voltage: 500V AC R.M.S for one minute
    3. Insulation resistance: 1000 M Ohms Min. at 500V AC
    4. Contact resistance:30M Ohms Max.
    5. Operating Temperature: -25℃ to 85℃
    6. Processing Temp:230C for 30~60 seconds Max
    7. Durability: 5000 cycles

    SIM CARD 6P SIM CARD 6P SIM CARD 8P SIM CARD 8P
