• CH1251 Series

    • Poles : 2-20
    • Material : PBT UL 84V-0 White
    • Suitable CT1251 Series Terminal
    • Mates With CW1251 Series Wafer

    Specifications

    • Current Rating : 1A
    • Voltage Rating : 125V
    • Temperature Range : -25℃~ +85℃
    • Insulation Resistance : 100MΩ Min.
    • Withstand Voltage : 250V AC / Minute

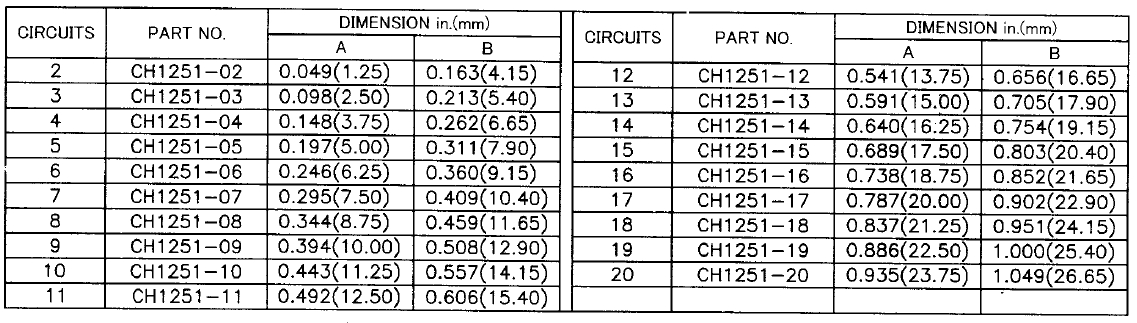

    CH1251

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
PART NO. CH1251
Poles
See Catalog
