• CW4269R, CW4269RA, CW4269RB Series
    ※ Poles: 2-24
    ※ Material: Insulator: NYLON66 UL94V-2
    ※ Contact: brass,tin plated 60u"
     Mates with CH4257 series housing
    Specifications
    ※ Current rating: 7A AC, DC
    ※ Voltage rating: 250V AC, DC
     Temperature range: -25℃ ~ +85℃
     Insulation resistance: 1,000MΩ min.
     Withstand voltage: 1500 AC/minute
     Applicable PC board thickness: 0.063" (1.6mm)

    CW4269RS

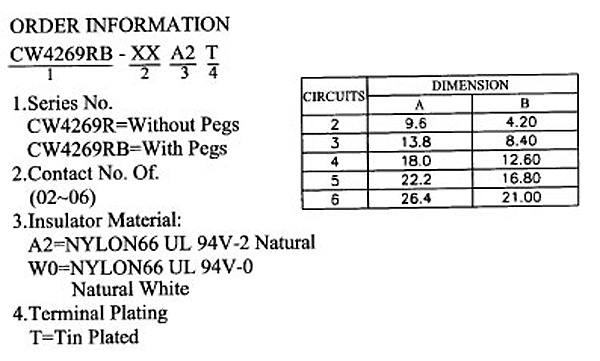

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. CW4269RS
Contact No. Of
Insulator Material A2=Nylon66 UL 94V-2 Natural
Terminal Plating T=Tin Plated
